Spraying device SV1
Technical data Drawing & dimensions Structure Consulting
Detailed view of the SV1 spraying device consisting of the connection piece and the spraying nose.
Close-up of a stainless steel flange with bolts and a central connection tube, used in piping systems.
Close-up of a metallic flange with a threaded connector and a central pipe fitting.
A metallic pressure vessel with a transparent window and a connector, designed for industrial applications.
Close-up of a metallic component with a cylindrical structure, featuring bolts and a protruding tube-like piece.
A metallic mechanical device with a cylindrical shape, featuring bolts and connectors along its circumference and a protruding shaft.

Spraying device SV1

for container sight glasses PN 10/16

Google reviews for aci24.com
Available from stock

To clean the sight glass plate

Datasheet
Certified quality
TÜV ISO 9001 Edelstahl Rostfrei
Technical data
  • 10
  • 16
  • 80°C
  • 130°C
  • 150°C
  • 175°C
  • 180°C
  • 200°C
  • 280°C
  • 300°C
  • 400°C
  • High-temperature execution up to 400 °C

Quick overview

max. 16 barg
heat resistant up to 400 °C
for liquid media
custom made design possible

Cross-section
drawing

Schematic diagram of a hydraulic cylinder with bolts and an oil inlet, illustrating the internal structure and flow direction.

Product information

The ACI spraying device SV1 is used for on-demand or continuous cleaning of glass plates in sight glass fittings. It reliably ensures a clear view of processes inside containers and plants, even under demanding operating conditions. The spraying device SV1 is suitable for operating pressures up to a maximum of 16 barg and can be used in flow sight glasses of type 320 according to DIN 28120.

Made of high-quality stainless steel 1.4571, the spraying device SV1 offers the highest chemical resistance and a maximum temperature resistance of up to 400 °C. The robust construction ensures a long service life and high reliability in daily operation.

In combination with the ACI sight glass wiper of type SGW, the spraying device SV1 achieves the best cleaning effect. The uniform distribution of liquid combined with the mechanical cleaning by the wiper allows for particularly thorough and efficient cleaning of the sight glass surface – ideal for processes where a permanently clear view is essential. We recommend using multiple spraying devices (min. 2 pieces) for nominal sizes > DN 200.

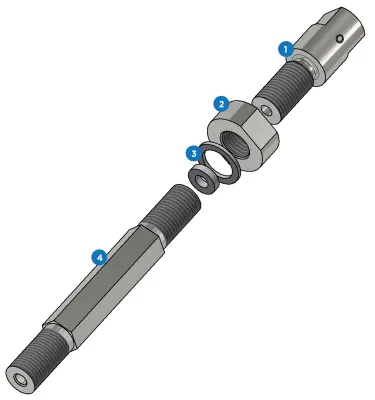

Exploded view of a spray nozzle assembly, including a spray nozzle, lock nut, gaskets, and connecting piece.
